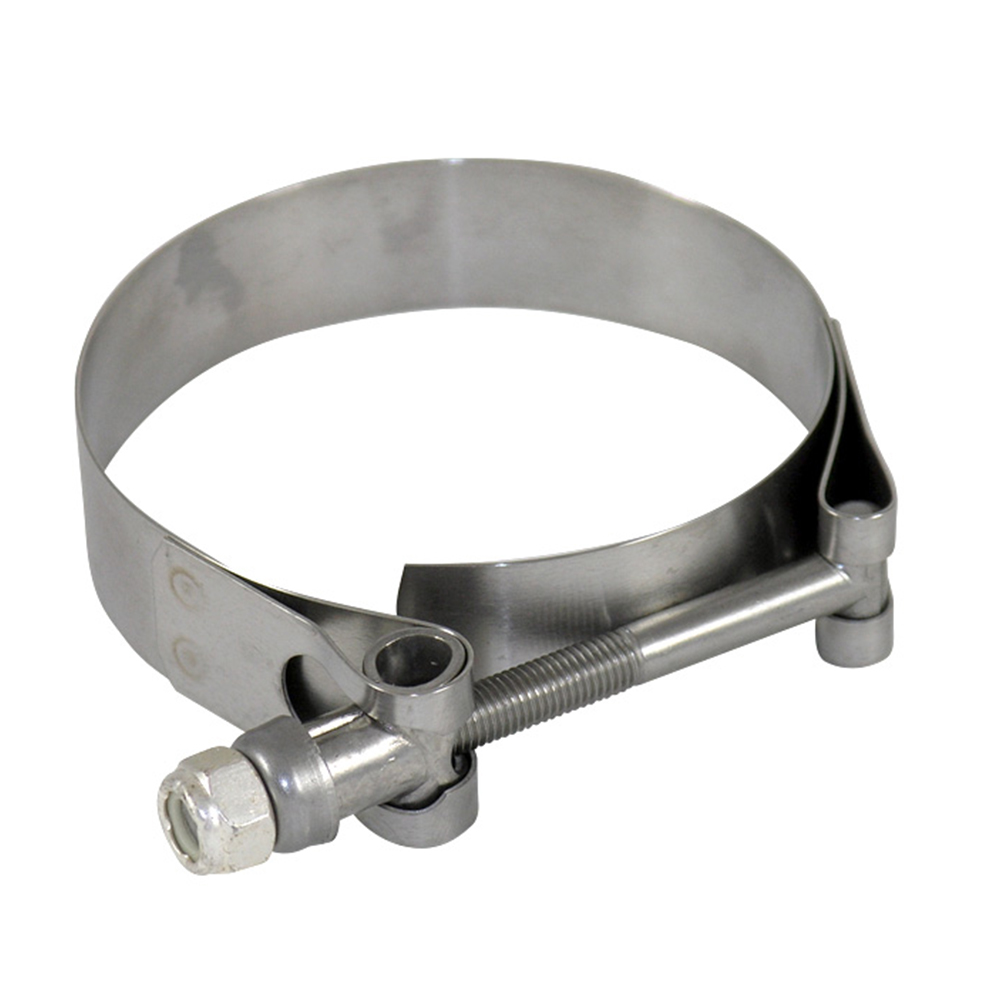

T-Bolt Clamps - Silicone Auto parts

Sizes: 17-19mm to all

Band Width: 18mm, 20mm, 22mm, 24mm, 26mm
Material: 201, 304, 316Stainless Steel
Any risk of damage to the hose is eliminated by tilted and smooth edge

Product performance description
European type hose clamps are the traditional hose clamp design that is most popular in the Americas. which have a crimped or interlocked construction so clamps are not welded.it is designed to attach and seal a hose onto a fitting, inlet/outlet, and more when harsh environmental conditions may adversely affect the clamping application and used where corrosion, vibration, weathering, radiation, and temperature extremes are a concern

NO.	Size	Band Width	Band Thickness W1	Band Thickness W2/W4	Thread	Screw Length	Break Torgae
NO.	mm	mm	mm	mm		mm	Nm
1	17-19	18	0.6	0.4	M5	40mm	4.5Nm
2	20-22	18	0.6	0.4	M5	40mm	4.5Nm
3	23-25	18	0.6	0.6	M5	40mm	4.5Nm
4	26-28	18	0.6	0.6	M5	40mm	4.5Nm
5	29-31	20	0.8	0.6	M6	50mm	9Nm
6	32-35	20	0.8	0.6	M6	50mm	9Nm
7	36-39	20	0.8	0.6	M6	50mm	9Nm
8	40-43	20	0.8	0.6	M6	50mm	9Nm
9	44-47	22	1.2	0.8	M6	55mm	9Nm
10	48-51	22	1.2	0.8	M6	55mm	9Nm
11	52-55	22	1.2	0.8	M6	55mm	9Nm
12	56-59	22	1.2	0.8	M6	55mm	9Nm
13	60-63	22	1.2	0.8	M6	55mm	9Nm
14	64-67	22	1.2	0.8	M6	55mm	9Nm
15	68-73	24	1.5	0.8	M8	70mm	18Nm
16	74-79	24	1.5	0.8	M8	70mm	18Nm
17	80-85	24	1.5	0.8	M8	70mm	18Nm
18	86-91	24	1.5	0.8	M8	70mm	18Nm
19	92-97	24	1.5	0.8	M8	70mm	18Nm
20	98-103	24	1.5	0.8	M8	70mm	18Nm
21	104-112	24	1.5	0.8	M8	70mm	18Nm
22	113-121	24	1.5	0.8	M8	70mm	18Nm
23	122-130	24	1.5	0.8	M8	70mm	18Nm
24	131-139	26	1.7	1	M10	90mm	29Nm
25	140-148	26	1.7	1	M10	90mm	29Nm
26	149-161	26	1.7	1	M10	100mm	29Nm
27	162-174	26	1.7	1	M10	100mm	29Nm

Product	Silicone Coupler Hose
Material	Silicone rubber + Fabric reinforcement
Working Temperatures	-60 °C ~ 260 °C
OEM/ODM	Available
Color	Blue/Black/Red/Green/Yellow/Pink/Orange, etc (Customizable color)
