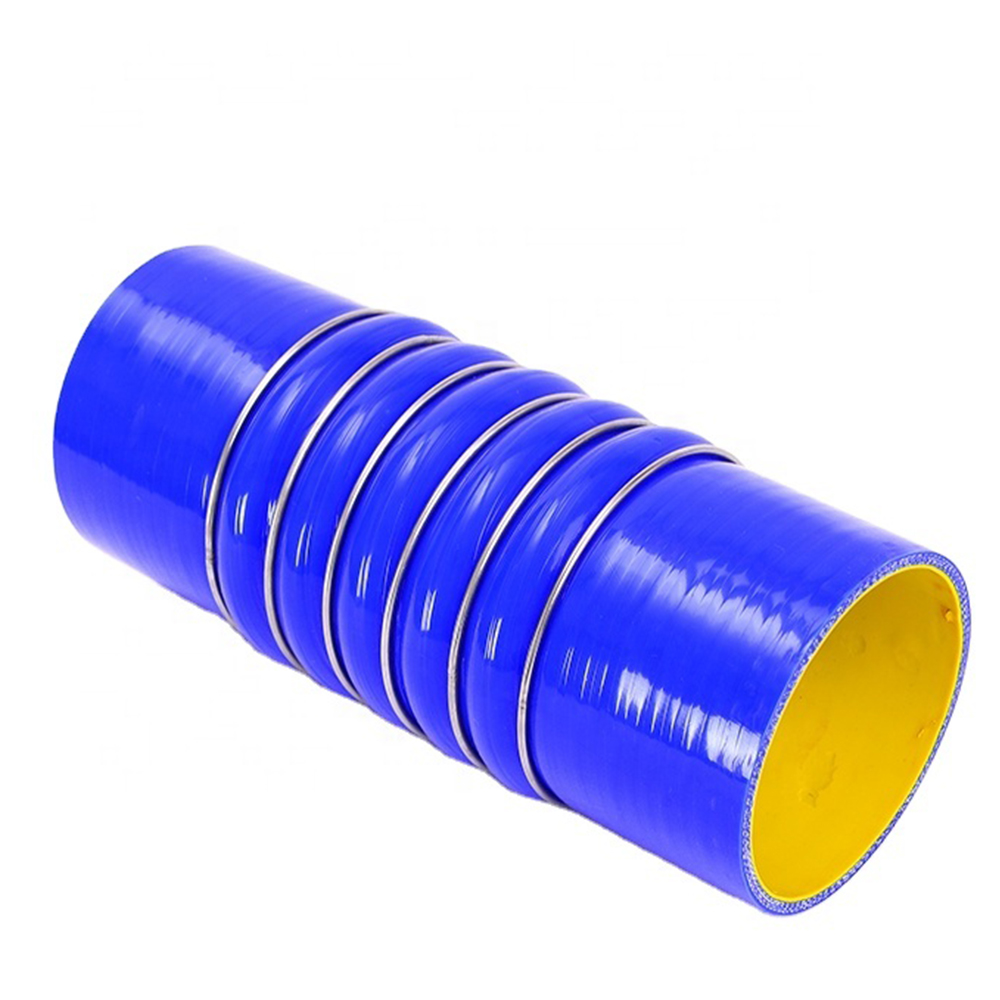

Silicone Auto parts
Specifications& Characteristics:
• Silicone with Polyester Fabric Reinforcement
• Ozone & Oil Splash Resistant • Suitable For Heavy Duty Applications
• Available (Upon Request) with Aramid Fabric Reinforcement for Extreme High-Temperature Applications
• Meets All Performance and Physical Requirements of:
• SAE J20 R1 • RP 303B Class 1
• Mil-Spec A-A-52426
• OEM Heavy-Duty Vehicle Requirements
• Available with Fluorosilicone or Fluorocarbon Liner (Petroleum & Chemical Applications)
• Temperature Range: -65°F to 350°F Continuous
• Colors: Blue, Black, Red, customized
| NO. | P/N | ID1 | ID2 | ID1 | ID2 | LENGTH | LENGTH | WALL | PLY | W.P |
| mm | mm | Inch | Inch | mm | inch | mm | ||||
| 1 | B6-63.5/203 | 63.5 | 63.5 | 21/2 | 21/2 | 203 | 8 | 5 | 4 | 0.4Mpa (57Psi) |
| 2 | B6-63.5/216 | 63.5 | 63.5 | 21/2 | 21/2 | 216 | 8 1/2 | 5 | 4 | 0.4Mpa (57Psi) |
| 3 | B6-63.5/229 | 63.5 | 63.5 | 21/2 | 21/2 | 229 | 9 | 5 | 4 | 0.4Mpa (57Psi) |
| 4 | B6-63.5/241 | 63.5 | 63.5 | 21/2 | 21/2 | 241 | 9 1/2 | 5 | 4 | 0.4Mpa (57Psi) |
| 5 | B6-68/229 | 68 | 68 | 22/3 | 22/3 | 229 | 9 | 5 | 4 | 0.4Mpa (57Psi) |
| 6 | B6-70/203 | 70 | 70 | 23/4 | 23/4 | 203 | 8 | 5 | 4 | 0.4Mpa (57Psi) |
| 7 | B6-70/216 | 70 | 70 | 23/4 | 23/4 | 216 | 8 1/2 | 5 | 4 | 0.4Mpa (57Psi) |
| 8 | B6-70/229 | 70 | 70 | 23/4 | 23/4 | 229 | 9 | 5 | 4 | 0.4Mpa (57Psi) |
| 9 | B6-70/241 | 70 | 70 | 23/4 | 23/4 | 241 | 9 1/2 | 5 | 4 | 0.4Mpa (57Psi) |
| 10 | B6-76/203 | 76 | 76 | 3 | 3 | 203 | 8 | 5 | 4 | 0.4Mpa (57Psi) |
| 11 | B6-76/216 | 76 | 76 | 3 | 3 | 216 | 8 1/2 | 5 | 4 | 0.4Mpa (57Psi) |
| 12 | B6-76/229 | 76 | 76 | 3 | 3 | 229 | 9 | 5 | 4 | 0.4Mpa (57Psi) |
| 13 | B6-76/241 | 76 | 76 | 3 | 3 | 241 | 9 1/2 | 5 | 4 | 0.4Mpa (57Psi) |
| 14 | B6-90/203 | 90 | 90 | 31/2 | 31/2 | 203 | 8 | 5 | 4 | 0.3Mpa (43Psi) |
| 15 | B6-90/216 | 90 | 90 | 31/2 | 31/2 | 216 | 8 1/2 | 5 | 4 | 0.3Mpa (43Psi) |
| 16 | B6-90/229 | 90 | 90 | 31/2 | 31/2 | 229 | 9 | 5 | 4 | 0.3Mpa (43Psi) |
| 17 | B6-90/241 | 90 | 90 | 31/2 | 31/2 | 241 | 9 1/2 | 5 | 4 | 0.3Mpa (43Psi) |
| 18 | B6-100/229 | 100 | 100 | 4 | 4 | 229 | 9 | 5 | 4 | 0.3Mpa (43Psi) |
| 19 | B6-102/203 | 102 | 102 | 4 | 4 | 203 | 8 | 5 | 4 | 0.3Mpa (43Psi) |
| 20 | B6-102/216 | 102 | 102 | 4 | 4 | 216 | 8 1/2 | 5 | 4 | 0.3Mpa (43Psi) |
| 21 | B6-102/229 | 102 | 102 | 4 | 4 | 229 | 9 | 5 | 4 | 0.3Mpa (43Psi) |
| 22 | B6-102/241 | 102 | 102 | 4 | 4 | 241 | 9 1/2 | 5 | 4 | 0.3Mpa (43Psi) |
| 23 | B6-114/190 | 114 | 114 | 41/2 | 41/2 | 190 | 7 1/2 | 5 | 4 | 0.22Mpa (32Psi) |
| 24 | B6-127/203 | 127 | 127 | 5 | 5 | 203 | 8 | 5 | 4 | 0.22Mpa (32Psi) |
| 25 | B6-152/203 | 152 | 152 | 6 | 6 | 203 | 8 | 5 | 4 | 0.17Mpa (25Psi) |
