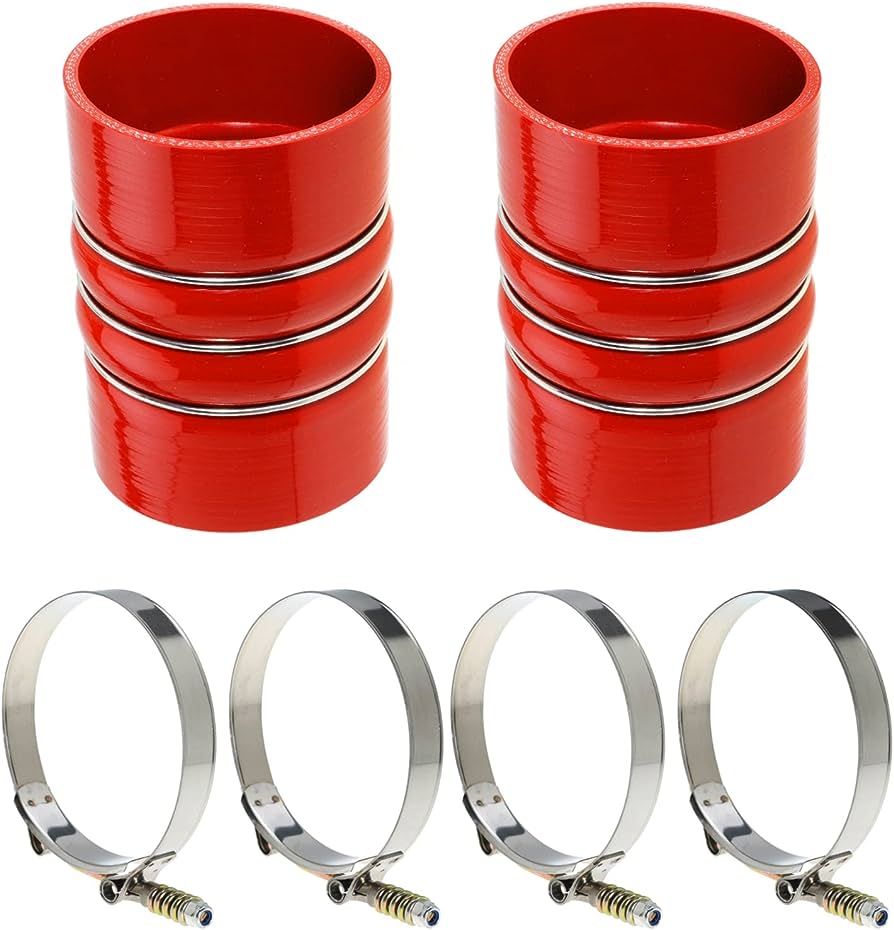

Silicone Auto parts
Specifications& Characteristics:
• Silicone with Polyester Fabric Reinforcement
• Ozone & Oil Splash Resistant • Suitable For Heavy Duty Applications
• Available (Upon Request) with Aramid Fabric Reinforcement for Extreme High-Temperature Applications
• Meets All Performance and Physical Requirements of:
• SAE J20 R1 • RP 303B Class 1
• Mil-Spec A-A-52426
• OEM Heavy-Duty Vehicle Requirements
• Available with Fluorosilicone or Fluorocarbon Liner (Petroleum & Chemical Applications)
• Temperature Range: -65°F to 350°F Continuous
• Colors: Blue, Black, Red, customized
| NO. | P/N | ID1 | ID2 | LENGTH | LENGTH | WALL | PLY | W.P |
| mm | inch | mm | inch | mm | ||||
| 1 | B2G1-51/102P4W5 | 51 | 2 | 102 | 4 | 5 | 4 | 0.5Mpa (72Psi) |
| 2 | B2G1-54/102P4W5 | 54 | 2 1/8 | 102 | 4 | 5 | 4 | 0.44Mpa (64Psi) |
| 1 | B2G3-57/152P4W5 | 57 | 2 1/4 | 152 | 6 | 5 | 4 | 0.4Mpa(57Psi) |
| 2 | B2G3-57/165P4W5 | 57 | 2 1/4 | 165 | 6 1/2 | 5 | 4 | 0.4Mpa(57Psi) |
| 3 | B2G3-57/178P4W5 | 57 | 2 1/4 | 178 | 7 | 5 | 4 | 0.4Mpa(57Psi) |
| 4 | B2G3-57/203P4W5 | 57 | 2 1/4 | 203 | 8 | 5 | 4 | 0.4Mpa(57Psi) |
| 5 | B2G3-63.5/152P4W5 | 64 | 2 1/2 | 152 | 6 | 5 | 4 | 0.4Mpa(57Psi) |
| 6 | B2G3-63.5/165P4W5 | 63.5 | 2 1/2 | 165 | 6 1/2 | 5 | 4 | 0.4Mpa(57Psi) |
| 7 | B2G3-63.5/178P4W5 | 63.5 | 2 1/2 | 178 | 7 | 5 | 4 | 0.4Mpa(57Psi) |
| 8 | B2G3-63.5/190P4W5 | 63.5 | 2 1/2 | 190 | 7 1/2 | 5 | 4 | 0.4Mpa(57Psi) |
| 9 | B2G3-63.5/203P4W5 | 63.5 | 2 1/2 | 203 | 8 | 5 | 4 | 0.4Mpa(57Psi) |
| 10 | B2G3-70/152P4W5 | 70 | 2 3/4 | 152 | 6 | 5 | 4 | 0.4Mpa(57Psi) |
| 11 | B2G3-70/165P4W5 | 70 | 2 3/4 | 165 | 6 1/2 | 5 | 4 | 0.4Mpa(57Psi) |
| 12 | B2G3-70/178P4W5 | 70 | 2 3/4 | 178 | 7 | 5 | 4 | 0.4Mpa(57Psi) |
| 13 | B2G3-70/190P4W5 | 70 | 2 3/4 | 190 | 7 1/2 | 5 | 4 | 0.4Mpa(57Psi) |
| 14 | B2G3-70/203P4W5 | 70 | 2 3/4 | 203 | 8 | 5 | 4 | 0.4Mpa(57Psi) |
| 15 | B2G3-76/152P4W5 | 76 | 3 | 152 | 6 | 5 | 4 | 0.4Mpa(57Psi) |
| 16 | B2G3-76/165P4W5 | 76 | 3 | 165 | 6 1/2 | 5 | 4 | 0.4Mpa(57Psi) |
| 17 | B2G3-76/178P4W5 | 76 | 3 | 178 | 7 | 5 | 4 | 0.4Mpa(57Psi) |
| 18 | B2G3-76/190P4W5 | 76 | 3 | 190 | 7 1/2 | 5 | 4 | 0.4Mpa(57Psi) |
| 19 | B2G3-76/203P4W5 | 76 | 3 | 203 | 8 | 5 | 4 | 0.4Mpa(57Psi) |
| 20 | B2G3-78/152P4W5 | 78 | 3 1/9 | 152 | 6 | 5 | 4 | 0.4Mpa(57Psi) |
| 21 | B2G3-78/165P4W5 | 78 | 3 1/9 | 165 | 6 1/2 | 5 | 4 | 0.4Mpa(57Psi) |
| 22 | B2G3-78/178P4W5 | 78 | 3 1/9 | 178 | 7 | 5 | 4 | 0.4Mpa(57Psi) |
| 23 | B2G3-78/190P4W5 | 78 | 3 1/9 | 190 | 7 1/2 | 5 | 4 | 0.4Mpa(57Psi) |
| 24 | B2G3-78/203P4W5 | 78 | 3 1/9 | 203 | 8 | 5 | 4 | 0.4Mpa(57Psi) |
| 25 | B2G3-83/152P4W5 | 83 | 3 1/4 | 152 | 6 | 5 | 4 | 0.3Mpa(43Psi) |
| 26 | B2G3-83/165P4W5 | 83 | 3 1/4 | 165 | 6 1/2 | 5 | 4 | 0.3Mpa(43Psi) |
| 27 | B2G3-83/178P4W5 | 83 | 3 1/4 | 178 | 7 | 5 | 4 | 0.3Mpa(43Psi) |
| 28 | B2G3-83/190P4W5 | 83 | 3 1/4 | 190 | 7 1/2 | 5 | 4 | 0.3Mpa(43Psi) |
| 29 | B2G3-83/203P4W5 | 83 | 3 1/4 | 203 | 8 | 5 | 4 | 0.3Mpa(43Psi) |
| 30 | B2G3-89/152P4W5 | 89 | 3 1/2 | 152 | 6 | 5 | 4 | 0.3Mpa(43Psi) |
| 31 | B2G3-89/165P4W5 | 89 | 3 1/2 | 165 | 6 1/2 | 5 | 4 | 0.3Mpa(43Psi) |
| 32 | B2G3-89/178P4W5 | 89 | 3 1/2 | 178 | 7 | 5 | 4 | 0.3Mpa(43Psi) |
| 33 | B2G3-89/190P4W5 | 89 | 3 1/2 | 190 | 7 1/2 | 5 | 4 | 0.3Mpa(43Psi) |
| 34 | B2G3-89/203P4W5 | 89 | 3 1/2 | 203 | 8 | 5 | 4 | 0.3Mpa(43Psi) |
| 35 | B2G3-90/152P4W5 | 90 | 3 1/2 | 152 | 6 | 5 | 4 | 0.3Mpa(43Psi) |
| 36 | B2G3-90/165P4W5 | 90 | 3 1/2 | 165 | 6 1/2 | 5 | 4 | 0.3Mpa(43Psi) |
| 37 | B2G3-90/178P4W5 | 90 | 3 1/2 | 178 | 7 | 5 | 4 | 0.3Mpa(43Psi) |
| 38 | B2G3-90/190P4W5 | 90 | 3 1/2 | 190 | 7 1/2 | 5 | 4 | 0.3Mpa(43Psi) |
| 39 | B2G3-90/203P4W5 | 90 | 3 1/2 | 203 | 8 | 5 | 4 | 0.3Mpa(43Psi) |
| 40 | B2G3-100/152P4W5 | 100 | 3 8/9 | 152 | 6 | 5 | 4 | 0.3Mpa(43Psi) |
| 41 | B2G3-100/165P4W5 | 100 | 3 8/9 | 165 | 6 1/2 | 5 | 4 | 0.3Mpa(43Psi) |
| 42 | B2G3-100/178P4W5 | 100 | 3 8/9 | 178 | 7 | 5 | 4 | 0.3Mpa(43Psi) |
| 43 | B2G3-100/190P4W5 | 100 | 3 8/9 | 190 | 7 1/2 | 5 | 4 | 0.3Mpa(43Psi) |
| 44 | B2G3-100/203P4W5 | 100 | 3 8/9 | 203 | 8 | 5 | 4 | 0.3Mpa (43Psi) |
| 45 | B2G3-102/152P4W5 | 102 | 4 | 152 | 6 | 5 | 4 | 0.3Mpa (43Psi) |
| 46 | B2G3-102/165P4W5 | 102 | 4 | 165 | 6 1/2 | 5 | 4 | 0.3Mpa (43Psi) |
| 47 | B2G3-102/178P4W5 | 102 | 4 | 178 | 7 | 5 | 4 | 0.3Mpa (43Psi) |
| 48 | B2G3-102/190P4W5 | 102 | 4 | 190 | 7 1/2 | 5 | 4 | 0.3Mpa (43Psi) |
| 49 | B2G3-102/203P4W5 | 102 | 4 | 203 | 8 | 5 | 4 | 0.3Mpa (43Psi) |
| 50 | B2G3-113/152P4W5 | 113 | 4 4/9 | 152 | 6 | 5 | 4 | 0.3Mpa (43Psi) |
| 51 | B2G3-113/165P4W5 | 113 | 4 4/9 | 165 | 6 1/2 | 5 | 4 | 0.3Mpa (43Psi) |
| 52 | B2G3-113/178P4W5 | 113 | 4 4/9 | 178 | 7 | 5 | 4 | 0.3Mpa (43Psi) |
| 53 | B2G3-113/190P4W5 | 113 | 4 4/9 | 190 | 7 1/2 | 5 | 4 | 0.3Mpa (43Psi) |
| 54 | B2G3-113/203P4W5 | 113 | 4 4/9 | 203 | 8 | 5 | 4 | 0.3Mpa (43Psi) |
| 55 | B2G3-115/152P4W5 | 115 | 4 1/2 | 152 | 6 | 5 | 4 | 0.22Mpa (32Psi) |
| 56 | B2G3-115/165P4W5 | 115 | 4 1/2 | 165 | 6 1/2 | 5 | 4 | 0.22Mpa (32Psi) |
| 57 | B2G3-115/178P4W5 | 115 | 4 1/2 | 178 | 7 | 5 | 4 | 0.22Mpa (32Psi) |
| 58 | B2G3-115/203P4W5 | 115 | 4 1/2 | 203 | 8 | 5 | 4 | 0.22Mpa (32Psi) |
| 59 | B2G3-140/152P4W5 | 140 | 5 1/2 | 152 | 6 | 5 | 4 | 0.20Mpa (29Psi) |
| 60 | B2G3-140/165P4W5 | 140 | 5 1/2 | 165 | 6 1/2 | 5 | 4 | 0.20Mpa (29Psi) |
| 61 | B2G3-140/178P4W5 | 140 | 5 1/2 | 178 | 7 | 5 | 4 | 0.20Mpa (29Psi) |
| 62 | B2G3-140/203P4W5 | 140 | 5 1/2 | 203 | 8 | 5 | 4 | 0.20Mpa (29Psi) |
| 63 | B2G3-152/152P4W5 | 152 | 6 | 152 | 6 | 5 | 4 | 0.3Mpa (43Psi) |
| 64 | B2G3-152/165P4W5 | 152 | 6 | 165 | 6 1/2 | 5 | 4 | 0.3Mpa (43Psi) |
| 65 | B2G3-152/178P4W5 | 152 | 6 | 178 | 7 | 5 | 4 | 0.3Mpa (43Psi) |
| 66 | B2G3-152/190P4W5 | 152 | 6 | 190 | 7 1/2 | 5 | 4 | 0.3Mpa (43Psi) |
| 67 | B2G3-152/203P4W5 | 152 | 6 | 203 | 8 | 5 | 4 | 0.17Mpa (25Psi) |
