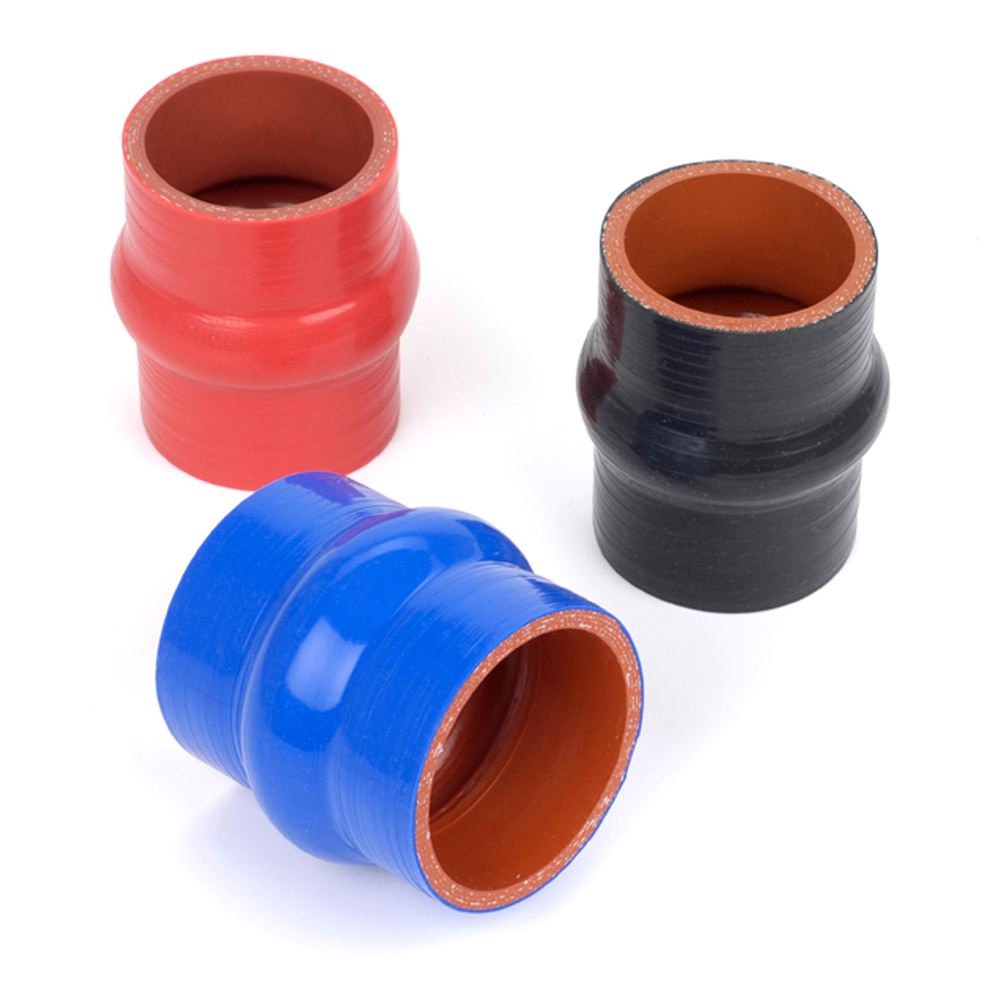

Silicone Auto parts
Specifications& Characteristics:
• Silicone with Polyester Fabric Reinforcement
• Ozone & Oil Splash Resistant • Suitable For Heavy Duty Applications
• Available (Upon Request) with Aramid Fabric Reinforcement for Extreme High-Temperature Applications
• Meets All Performance and Physical Requirements of:
• SAE J20 R1 • RP 303B Class 1
• Mil-Spec A-A-52426
• OEM Heavy-Duty Vehicle Requirements
• Available with Fluorosilicone or Fluorocarbon Liner (Petroleum & Chemical Applications)
• Temperature Range: -65°F to 350°F Continuous
• Colors: Blue, Black, Red, customized
| NO. | P/N | ID1 | ID2 | LENGTH | LENGTH | WALL | PLY | W.P |
| mm | inch | mm | inch | mm | ||||
| 1 | B2G1-51/102P4W5 | 51 | 2 | 102 | 4 | 5 | 4 | 0.5Mpa (72Psi) |
| 2 | B2G1-54/102P4W5 | 54 | 2 1/8 | 102 | 4 | 5 | 4 | 0.44Mpa (64Psi) |
| 3 | B2G1-57/102P4W5 | 57 | 2 1/4 | 102 | 4 | 5 | 4 | 0.4Mpa (57Psi) |
| 4 | B2G1-60/102P4W5 | 60 | 2 1/3 | 102 | 4 | 5 | 4 | 0.4Mpa (57Psi) |
| 5 | B2G1-63/102P4W5 | 63 | 2 1/2 | 102 | 4 | 5 | 4 | 0.4Mpa (57Psi) |
| 6 | B2G1-63.5/102P4W5 | 63.5 | 2 1/2 | 102 | 4 | 5 | 4 | 0.4Mpa (57Psi) |
| 7 | B2G1-70/102P4W5 | 70 | 2 3/4 | 102 | 4 | 5 | 4 | 0.4Mpa (57Psi) |
| 8 | B2G1-72/102P4W5 | 72 | 2 5/6 | 102 | 4 | 5 | 4 | 0.4Mpa (57Psi) |
| 9 | B2G1-76/102P4W5 | 76 | 3 | 102 | 4 | 5 | 4 | 0.4Mpa (57Psi) |
| 10 | B2G1-80/102P4W5 | 80 | 3 1/7 | 102 | 4 | 5 | 4 | 0.3Mpa (43Psi) |
| 11 | B2G1-83/102P4W5 | 83 | 3 1/4 | 102 | 4 | 5 | 4 | 0.3Mpa (43Psi) |
| 12 | B2G1-89/102P4W5 | 89 | 3 1/2 | 102 | 4 | 5 | 4 | 0.3Mpa (43Psi) |
| 13 | B2G1-95/102P4W5 | 95 | 3 3/4 | 102 | 4 | 5 | 4 | 0.3Mpa (43Psi) |
| 14 | B2G1-102/102P4W5 | 102 | 4 | 102 | 4 | 5 | 4 | 0.3Mpa (43Psi) |
